BSAA

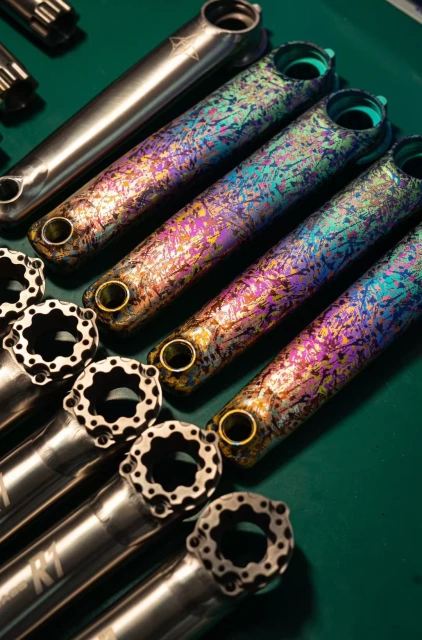

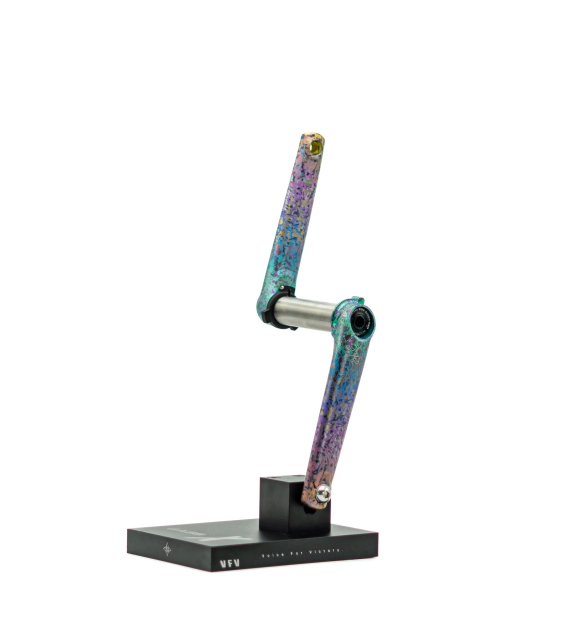

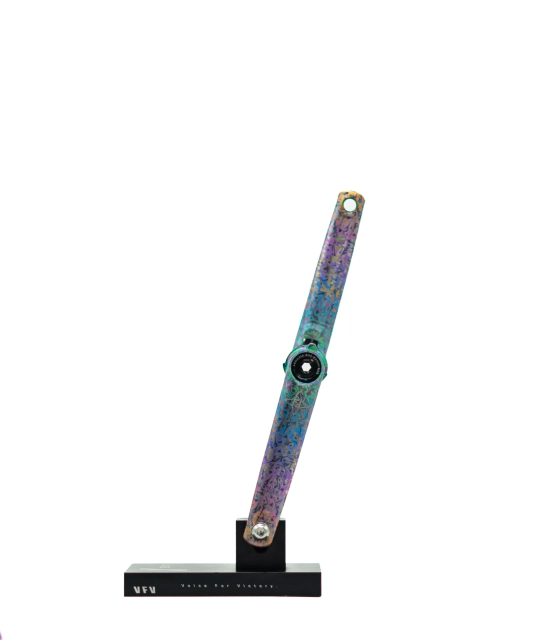

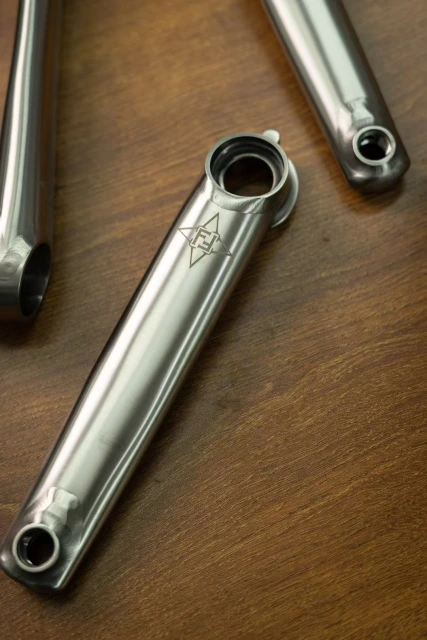

We are available in 5 models in 2 colours

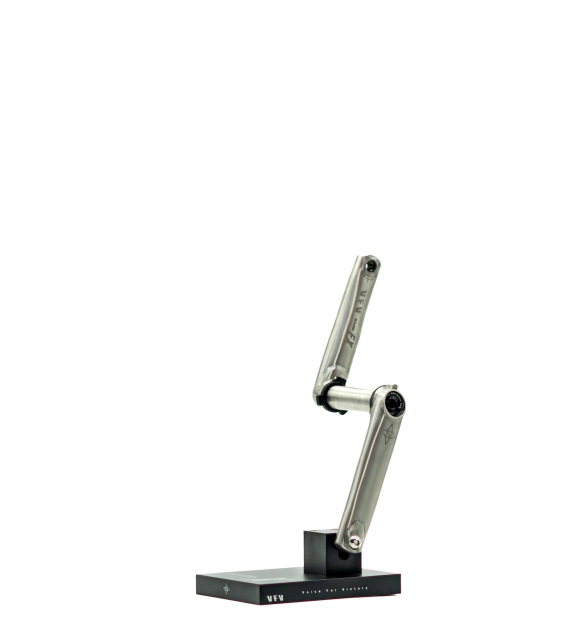

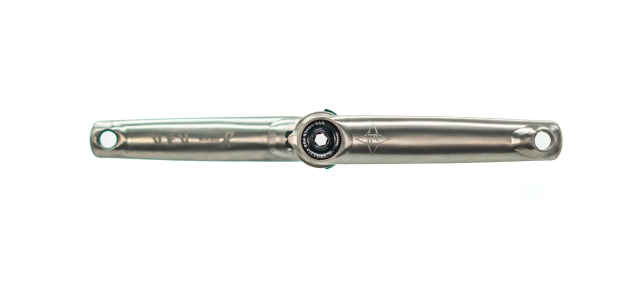

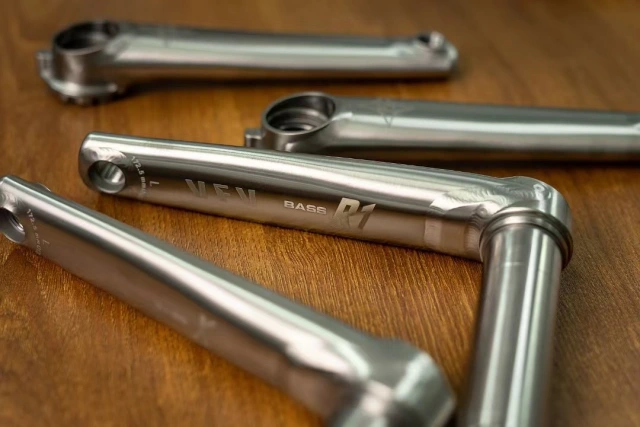

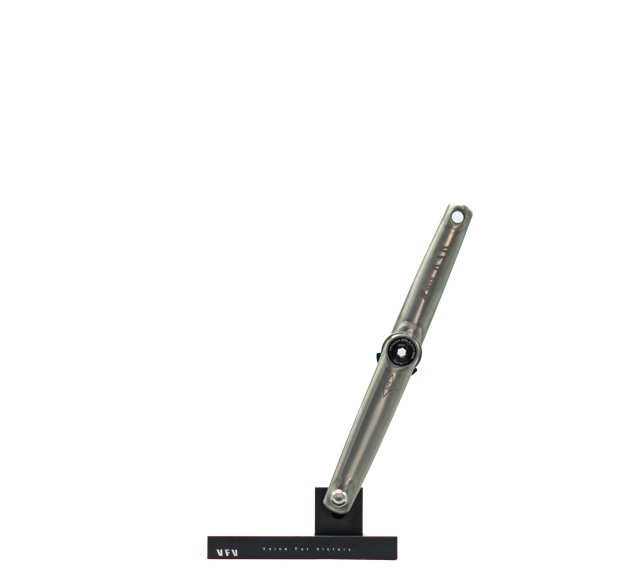

Color 1: Original titanium

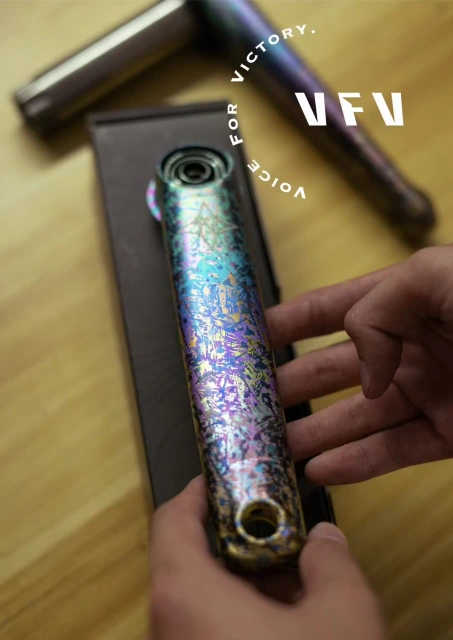

Color 2: Color gradient
For this reason, we named color 2: VC1

0.0 (0 Reviews)
$0.00 $799.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • V1:
    R
    R1
    X
    EX
    EX-DH
Quantity
-
+
  • Description


Installation instructions:




Safety Information

The crankset is an important part of your bicycle. Before installing and using your crankset, carefully read this owner’s manual to learn the correct installation and adjustment procedures of this crankset.

WARNING!

An improperly installed and/or adjusted crankset can cause serious harm or death and may severely damage your bicycle.  A broken or malfunctioning crankset may cause loss of vehicle control and result in SERIOUS INJURY OR DEATH.  Modification, improper service or use of aftermarket replacement parts voids the warranty and may cause the crankset to malfunction, resulting in loss of vehicle control and SERIOUS INJURY OR DEATH.  Do not modify your bike frame or crankset.  Use only genuine VFV replacement parts.



Installation Instructions

Step 1: Confirm Frame/Bottom Bracket Fitment

  1.  Confirm the correct bottom bracket is installed on the bicycle to properly work with the crankset.  The bearing internal diameter of the bottom bracket must be 29mm.
  2.  Determine bottom bracket spacer orientation.  For bottom bracket installation, refer to bottom bracket manufacturer’s installation instructions.





Step 2: Install Chainring.

  1. VFV BASS cranksetuse the *SRAM X-SYNC ®direct mount chainring interface
  2. Place a compatible chainring onto the crank arm.

Rear Wheel Spacing

Chainring Offset

142mm

6mm

148mm

3mm

157mm

0mm



3. Apply a thin layer of Antimelting agent for titanium (small brown tube included in packaging) to AHLO the threads of each chain ring bolt.  Then, Install chain ring bolts onto the crank arm and fasten bolts to 8-9Nm (71-80 in-lb)


Step 3: Crankset Installation

  1.  Apply Antimelting agent for titanium or grease to the spindle of the non-drive side arm and inner bearing race of the bottom bracket.
  2. The preload nut should be as close too the non-drive side crank arm as possible prior to installation.









  1.  Apply a thin layer of Antimelting agent for titaniumto the threads of the fastening bolt.
  2.  Using the preload nut, remove any gap between the non-drive side crank arm and the bearing cover by turning the preload nut clockwise by hand.  Once the gap is removed and the crank arms have no side to side play, fasten the 2.5mm allen wrench bolt to 1.4Nm (12.4in-lb) on the preload nut to secure the set preload.
  3.  Install pedals into the pedal insert threads.  Refer to pedal manufacturers instructions for pedal torque.  Pedal insert washers are not required.
